Resource Description Framework¶

This module provides a comprehensive framework for parsing, analyzing, and rendering RDF (Resource Description Framework) schemas, with a focus on the Common Information Model (CIM) and related standards. It enables the transformation of RDF-based ontologies into strongly-typed C#, Java(experimental) and Python(experimental) classes and enumerations, supporting advanced code generation and schema management scenarios.

Key Capabilities¶

RDF Schema Parsing
- Extracts namespaces, headers, classes, attributes, data types, enumerations, and concrete classes from RDF/XML files.
- Supports detailed introspection of RDF graphs using the dotNetRDF library.
Schema Analysis
- Analyzes RDF classes, attributes, and data types to determine their render requirements and C#, Java(experimental) and Python(experimental) type mappings.
- Distinguishes between primitive types, references, enumerations, and concrete classes.
Code Generation
- Renders C#, Java(experimental) and Python(experimental) classes and enumerations from RDF schema definitions using Scriban templates.
- Supports extensible and customizable code generation pipelines.
Schema Management
- Provides a domain service for loading, updating, and managing RDF schema representations.
- Enables updating of schema elements (classes, attributes, data types, enumerations) in a consistent and type-safe manner.
Ontology Hierarchy Support (experimental)
- Support for ontology graph parsing and hierarchy building, including class inheritance and property relationships.

Tool¶

The ModelGenerator is a command-line tool for generating code from RDF schema files (such as CGMES or CIM). It supports multiple target languages (CSharp, Java, Python) and is highly configurable via command-line options.

Usage¶

You can use a published executable

GridLab.PSSX.ModelGenerator.exe [OPTIONS]

Example

GridLab.PSSX.ModelGenerator.exe \
  --input CGMES_Schema/CGMES_3.0.0 \
  --language CSharp \
  --mergeSchemas true \
  --profileName IEC61970 \
  --namespace Profiles.IEC61970 \
  --version 3.0.0

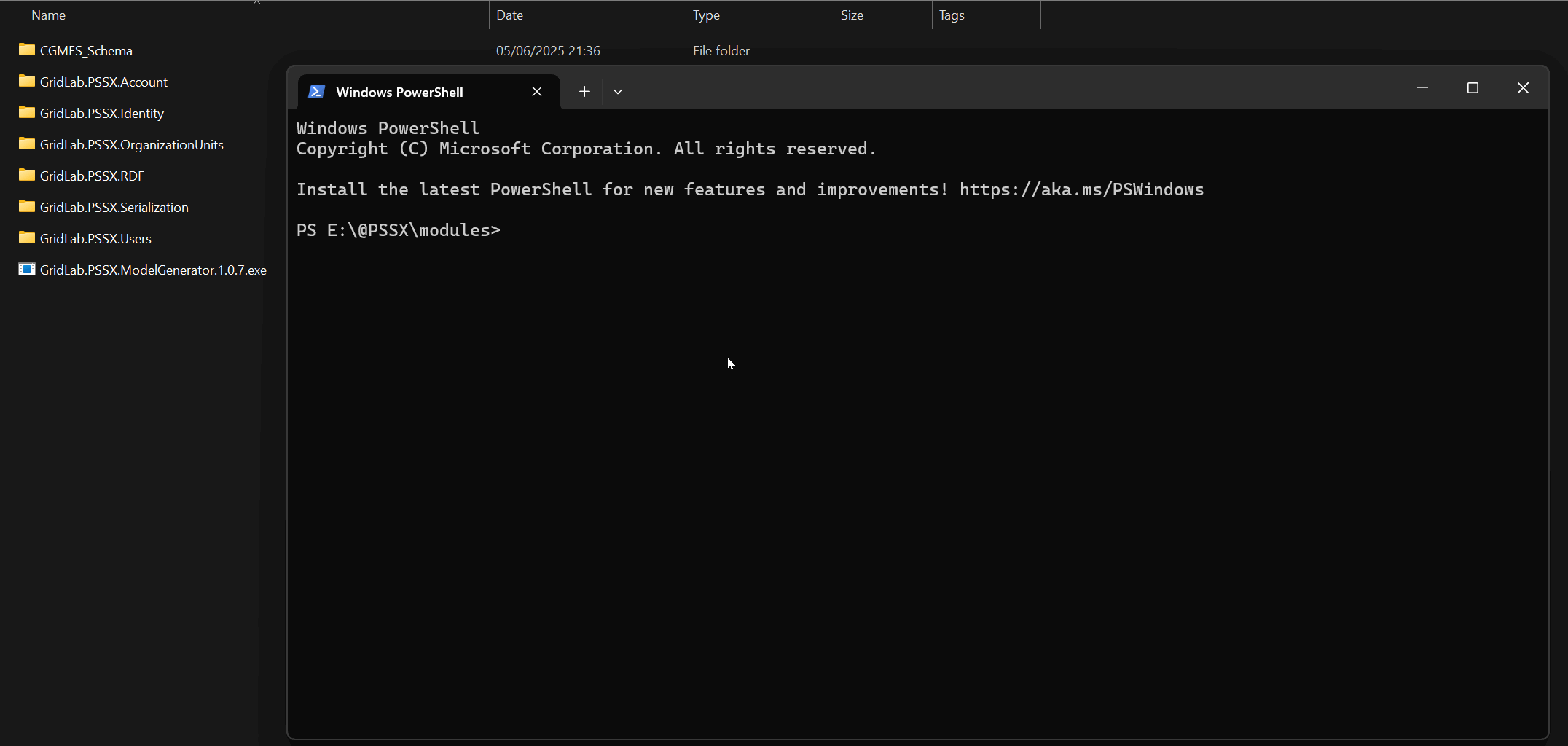

example

Common Options:

Option	Description
-i, --input	Directory containing RDF files
-p, --rdfFilePattern	File pattern to search for RDF files (default: *.rdf)
-f, --inputFile	Single RDF file to process
-o, --output	Output directory (defaults to executable location)
-m, --mergeSchemas	Merge all schemas and their attributes
--profileName	Name of the profile for generated classes (if schemas are merged)
--version	Version for generated classes (if schemas are merged)
--namespace	Namespace for generated classes (if schemas are merged)
--overwriteFiles	Overwrite existing files in the output directory
--classTemplatePath	Path to custom Scriban template for classes
--enumerationTemplatePath	Path to custom Scriban template for enumerations
-l, --language	Target language: CSharp, Java, Python
-w, --logWarnings	Log warnings for missing/malformed schema elements
-d, --includeDeprecated	Include deprecated classes/properties
--namespaces	Allowed namespace prefixes (comma-separated)
--allowedClassNames	Allowed class names (comma-separated)
--allowedAttributeNames	Allowed attribute names (comma-separated)
--allowedEnumerationNames	Allowed enumeration names (comma-separated)
--ignoreUnknownTypes	Ignore unknown/unsupported RDF types instead of throwing
--inferLabels	Infer missing labels from URIs
--normalizeLiterals	Normalize literal values
--throwOnUnknownTypes	Treat unknown/unsupported types as errors
--inferPropertyTypes	Infer missing property types from context
--normalizeNames	Normalize property/class names (e.g., PascalCase, SnakeCase)
--reservedKeywordSuffix	Suffix to append to reserved keywords
--includeAutoGeneratedComment	Include an auto-generated comment in generated files

To see all options and their descriptions, run:

GridLab.PSSX.ModelGenerator.exe --help
